Why won’t my program use more than 25% of the CPU?

Multi-core processors add an additional layer of complexity to software design. Occasionally that can manifest as only 25% of the CPU being used.

//

I am running a VERY LONG Excel’03 Spreadsheet (can be configured to loop calculating alternatives for hours using an embedded Basic Program/Macro). I am running this on a Quad Core Intel Q6600 with 4 GB.

When I check in Task Manager, the System Idle Process will not drop LOWER than 75% and the Excel Process will max out at 25%. I’ve tried upping the priority of the process and have checked the “affinity” to ensure it’s using all 4 processor cores. The Performance tab does show activity / load on all 4 processor windows.

What’s up? Why can’t I utilize more than 25% of my system when I want to use it for a high priority and very lengthy task?

It’s one of the most frustrating things to experience. Here you go and spend extra money to get that super fast quad- (or more) core processor, throw a huge task at it expecting it to go two or four times faster…

And it just pokes along.

The good news, if you want to call it that, is that there’s nothing wrong. The bad news is that … there’s nothing to be fixed. This is completely expected, and depends entirely on the software you’re running.

Definition: core

A “core” is, in essence, a single CPU. Thus, a “quad-core” machine has the equivalent of four separate CPUs on a single chip. Each CPU can execute tasks independently of the others (I’m oversimplifying, of course) without being affected by the others.

It’s kind of like having four computers instead of just one. (I’ll be using quad core as my example throughout this article, but the comments apply to all multi-core processor chips, though the math might change a little).

Unfortunately this also leads to some confusion in terminology, as the acronym CPU (Central Processing Unit) isn’t always used consistently:

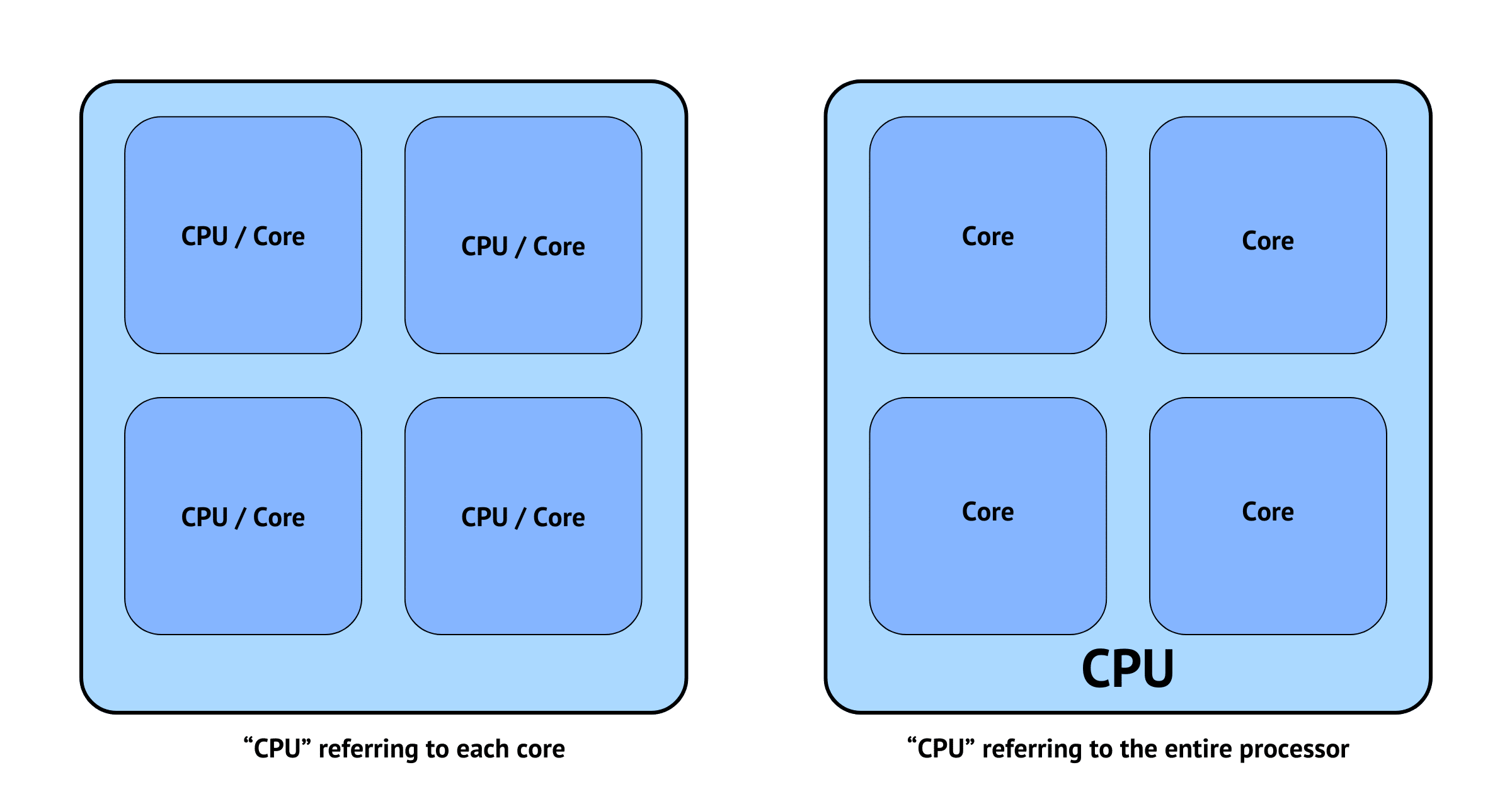

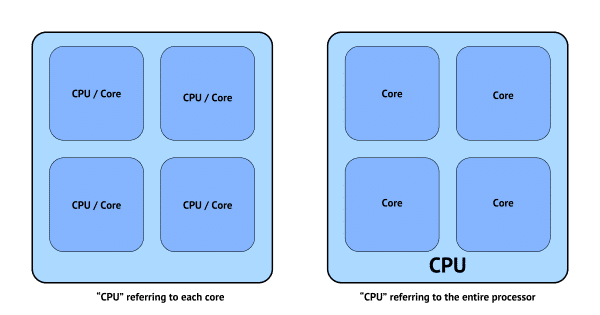

CPU versus CPU

The term “CPU” is sometimes used to refer to each individual core in a processor, as I’ve used it above left. More often, and perhaps more correctly, it’s also used to refer to the entire processor, no matter how many cores it contains.1 Unless you’re specifically interested in some aspect of having multiple cores, the distinction isn’t important.

There are at least two times that multiple-core processors can be beneficial:

  • When you do several different processor-intensive things at once.
  • When you use software that can do one processor-intensive thing and spread it across multiple processors.

What it means to be processor intensive

CPUNote the phrase “processor intensive”. Reading email, browsing the web, typing up a document – these are not processor-intensive tasks. As you do any of those things, the computer’s processor is spending most of its time idle, waiting for something else.

It might be waiting for the next byte of data to come down your internet connection or the next block of data to arrive from your hard disk; or, it might be waiting for you to type the next character. The bottom line is that your computer’s processor is spending most of its time just waiting, doing almost nothing.

Processor-intensive tasks, on the other hand, usually involve calculations of some sort. Excel is a good example, but there are others, like image, audio, and video compression and manipulation. Anything that does a lot of math or calculation, or manipulates a lot of data in your computers’ RAM memory, could end up being processor intensive. When a such a task is in progress, it’s typically using as much of the processor’s capabilities as it can in order to complete its work.

Hyperthreading

One technology that often confuses both people and software is Intel’s hyperthreading. Without actually being a dual-core CPU, a processor that supports hyperthreading actually looks like a dual-core processor to most software.

Hyperthreading itself is fairly complex. As a gross oversimplification, it amounts to an optimization in the CPU innards that treats certain operations as if there were two CPUs, even though there are not. Just like true multi-core processors, software needs to be written as “multi-threaded” in order to take advantage of hyperthreading.

It’s no longer the sales point that it once was, but hyperthreading remains present in most modern Intel x86 CPUs. My 12-core desktop, for example, will actually show as having 24 cores in certain software.

Multiple cores

Now, if you’re doing just one processor-intensive thing, then a multiple-core machine can be quite nice. One core can be dedicated to that task, and the other is left free to handle whatever you might be doing, like surfing the web or reading your email. Even though those activities don’t use much CPU, they do use some.

In a single-core computer, you’ll immediately notice when the CPU is being used completely by some other process, because the system bogs down. On a multiple-core machine, it’s not uncommon to have a processor-intensive task take up one core and it not impact your other usage at all.

The true benefit of a multiple-core machine becomes apparent when you use software that knows how to use multiple processors. In fact, that’s why I’m now on a 12-core machine; the video processing software I have is multi-core aware, and will make use of all CPUs when encoding video. The result is that it does it much faster than it would if I were on a single-core machine.

And there’s the issue: software must be multi-processor aware (typically “multi-threaded”, in computer-ese) in order to make use of more than one CPU or core at a time.

I’m guessing that your version of Excel is not.

Multi-core software

Now, part of me is surprised; if any consumer or small-business application could benefit from multiple processor support, it would be Excel.

On the other hand, having actually done multi-threaded programming, I also understand how incredibly difficult it is to do properly.

On top of that, there is no practical way to take a random computer program or algorithm and “automatically” split it up so that the work can be divided among multiple processors. Software must be designed to use them.

Since Excel essentially allows you to write a computer program (in the form of cell relationships and its macro programming language), it has no way to know how to split up your work in a way that will succeed when spread across multiple processors.

There are certainly efforts to figure out how to do this kind of thing, but it’s still the stuff of computer science researchers.

Yes, it’s that difficult.

Get More Answers!

Each week I publish The Ask Leo! Newsletter where you can find more answers tips and tricks to make your technology "just work"!

Subscribe NOW and get a FREE copy of my special report "10 Reasons Your Computer is Slow (and what to do about it)".

This report will help you identify exactly why your computer is slowing down and the steps you can take to fix it.



My Privacy Pledge

Using only 25% of the CPU

The bottom line is that when you see a single program consistently take up 25% of the CPU on a quad-core processor, you can almost bet that it’s software that only knows how to use a single processor at a time.

In fact, without even knowing how many cores may be present, seeing a computer “pegged” at 25% usage is a good indication that it’s a quad-core machine, and that it’s running single-core processor-intensive software.

And no, there’s no magic setting that can make it do otherwise.

Did you waste money on your quad core machine? It really depends on how you use your machine, but I’d say it’s unlikely.

It’s absolutely fantastic to have multiple cores of some sort, simply because it can help prevent your machine from bogging down due to the actions of only one single-core program. It’s also handy when you’re doing multiple things at once, be it multiple browser windows or other programs on your machine. Dual core, at a minimum, and even quad, can help keep your system responsive as you, and it, juggle all those activities.

If most machines weren’t already at least dual-core these days, I’d strongly advise that you never get a single-core processor again.

But I’ll be the first to admit that my 12-core machine is pretty much wasted most of the time. It’s only when I run multiple virtual machines, or fire up that video encoding software, that all the cores really come into play. Then, for me, it’s well worth the expense.

This is an update to an article originally posted : January 14, 2009
Play
Footnotes and references

1: It’s never used to refer to the box that sits on your desk or floor to which your monitor, keyboard and mouse are connected. That’s the “computer”. It contains the CPU and a lot more.

Comments

  1. Chris

    I never tried this myself, but would setting the affinity of a “multi-threaded” application to use only 3 out of the 4 cores actually listen to you and leave a single core free for other things?

    It would be nice too, to see some kind of logo or something on the software that tells you how many cores it’s programmed to work for… Like movie ratings you see on DVDs…. wishful thinking.. lol

  2. Jeff Lentz

    Right on the money, as always, Leo. When I built my own quad-core at home and was doing processor cooling fan tests, I had to run four separate instances of Prime95 (a single-thread prime number searching program commonly used for “loading” a processor for testing) to get my CPU utilization up to 100%. Each instance grabbed exactly 25% of my quad-core chip, maxing out just the processor it was running on.

  3. Julian Hicks

    One of the confusing things about Windows use of multiple cores is that it ‘spreads the work out’ [i.e. it uses all the cores], even when it doesn’t need to. WIth only one task running, it only needs to use one of the cores.

    Chris; of course your suggestion about affinity will work [and leave one processor free] but that’s not what a multi-core application wants! It would want to run on all four CPUs but you would have limited it to three. [You don’t need to leave one ‘free’, as the System will run things ‘in the right order’ anyway; i.e. the dispatcher will prioritise as appropriate].

  4. Julian Hicks

    P.S. I find the best value CPU speeed per Pound spent [sorry, Dollar spent :-)] comes from the cheaper dual core processors [not Hyperthreaded ones though!]. 2 x 3GHz is more useful and cheaper than 4 x 2.5, for example. The Excel sample quoted would run at 3GHZ with one CPU unused rather than at 2.5GHz with three CPUs unused.

    • Fred Wortham

      I’ve found the same thing, Julian. Unless I’m running some serious encoding/compression software on a fairly routine basis (or math intensive stuff on Excel, again, regularly), quad core would be overkill.

  5. Dimitris

    Excel 2007 to use all available cores:
    Click Office Button, goto excel options, advanced and look for the section formulas. Enable multi threaded calculation

  6. Kevin

    I have the same trouble running Excel VBA code. The “Enable multi-threaded” option does not seem to solve the problem, still 25% the cpu being used. I made a sample VBA program and timed how long it took to run. Here are some comparative results on some of my machines and my colleagues machines(in seconds):
    Single core Results
    MyDeskTop (2.79GHz, 1GB, XP) 71
    MyWorkLaptop (2.2 GHz, 1GB, W2000) 84
    JasonComp (P4 3.0 GHz, 1GB, XP) 61

    Dual Core Results:
    John (1.83 GHz duo, 2GB ram, XP) 59
    Akio (2.16 Duo celeron,3.4GB, XP) 49
    Kevin (2.4 Core 2 Duo, 3 GB ram, XP) 42

    Quad Core results:
    Tom (3.0 GHz Quad Xeon, XP, 64 bit, 3 GB ram) 36 Kevin (2.83 Quad Core, 3 GB ram, XP 32) 37 Note that the quad core only seems to run at dual core speed?? Why?

    Also for all results for the single core, the task manager shows CPU at 100%, for dual core, it shows the CPU at 50%, and for the quad, CPU @ 25%. Bizarre results. The dual core calculates almost twice as fast as the single of the same GHz, but the quad core shows no improvement in calculation speed over the dual core. Why????? I am desperate because I write alot of VBA code and feel I wasted my money with the quad core. Maybe should have gone with a dual and overclocked. How can I speed up Excel VBA so that it runs at a suitable speed on my quad core?
    Also, has anyone tried running Excel VBA on vista? any difference in speed? I am grateful for any replies. Thanks, Kevin

    I would be shocked if Excel could somehow spread the work of an arbitrary VBA macro acros multiple cores. As I said earlier, how to spread work across multiple processors is one of those incredibly complex problems that simply isn’t solvable by today’s software.

    - Leo
    13-Feb-2009
    • Mike D

      My guess is that Excel itself is only using 1 processor, and the extra speed of the multiprocessor machines is because background tasks (such as writing to the disk) can be done by the other processor(s). These tasks can be handled comfortably by 1 extra processor, so having 2 more processors doesn’t produce an improvement.

  7. Stephan

    Kevin, I just realized the same thing as you did: while Excel 2007 can use multiple cores for spreadsheet calculations, it can not when it comes to VBA programs. 2 thoughts on this: 1) maybe it’s faster in some VBA applications to convert them to pure spreadsheet calculations 2) I do a lot of Monte Carlo simulation in my VBA programs and here the rule for Multi-processor use would be quite simple: calculate half of the scenarios with 1 processor and the other half with the other – of course there is no way to tell this to Excel – but I am trying now to run 2 instances of Excel in parallel and then combine the results “manually”.

  8. Martyn

    My issue is a little more intreaging as my work PC locks at 25% CPU useage when running certain large Excel files, but when I interogate Task Manager I find that it seems to be usnig 50% of core 3 and 50% of core 4. I assume this si a little harder to explain, as it is obviously splitting the process across two cores of my quad core, but using all of neither of them. any ideas???

  9. Jonathan

    Hi Leo. I often get the “not responding” problem (using XP) that you have written about elsewhere. Especially when I’m on a slow internet connection. Everything grinds to a halt.

    The IT guy who supports our business says “your laptop is rubbish – too old – get one with a dual core processor”. But I want to be sure this will fix the problem. How can I tell? Does it depend on the “multi-threaded programming” you mention above, or will two processors allow my PC to ignore the not-responding programme and get on with my other work meanwhile?

    Any hints welcome, and thanks for the useful info on your site.

    A multi-core processor won’t fix anything – if a program has a problem it’ll probably still have a problem. But yes, a multi-core processor might allow you greater control over your computer while the problem is happening. I have to say “might” because of course it all depends on the specifics.

    Leo
    10-Apr-2010

  10. Tahmaseeb

    Everyone talked about the problem but not the solution regarding excel talking 50% of core2 and 25% of Quad…i check n it is muti threaded, there is a option to turn it off or on in excel, yet it doesnt take more then 50% i have a lot of formula in my workbooks mostly referenced to other workbook, it would be very helpful if excel took 100% of my processor…anyone have any ideas??

  11. Sun

    I have a multithreaded software that does a lot of math calculation. It starts with 70-80% cpu usage. After some time (5 – 10 min) the cpu usage drops to 20% and you can tell that the software does much less work per min. Does any one know what is going on and how to fix it such that it will run with 70% usage all the time?

    My computer is a dual core windows 7 laptop.

    Thanks.

  12. Imran Amjad

    Hi,

    Just to add here, in .net 4 framework, a Task Parallel library TPL is introduced using which you can run as many excel.exe in parallel as many cores your system has. I just did that in recent project. Let me know if anyone needs help on it.

  13. Tim Auger

    I can’t speak for earlier versions, but Excel 2007 certainly uses as many cores as are available and the benefit of the additional cores in my quad core pc is very noticeable compared to colleagues’ dual core ones.

    On the other hand Access running ‘action queries’ – typically a series of those in a macro – seems only to use 1 core. Always seems odd to me.

  14. Rich Deem

    I use Excel 2013 64-bit. It seems to do much better at multi-core use and actually tells you when it is using the cores. It seems to use all cores for all formula calculations (I have done this on 1 GB-sized files, with millions of formulas). However, when loading and saving files, it uses only one core. I would consider upgrading to the 64-bit version of Excel, since it handles memory and processor use much better than previous versions.

  15. John at the Falls

    One topic that has not been mentioned is Real Cores vs. Virtual Cores. Dual Core with Hyperthreading means you have 2 real cores running 2 virtual cores on each core. This will show up as 4 cores on Windows Task Manager performance tab. It is like 4 workers sharing 2 desks.

    I recently purchased 2 off lease Thinkpads to run a professional 3D CAD program. I found the i3, i5 and i7 designations to be useless for comparison. The only way to understand all the choices and to make a logical comparison was to make a spreadsheet and use the cpubenchmark dot net website. (Scroll down to “Search for Your CPU”). Only then was I able to understand what I was buying. Even then I had to keep in mind that the 3D CAD program was only a single core program so I had to look at the single core benchmark (only found using the comparison tool on the search page).

    During my research, I found an article written by one of the graphics card manufactures. The article listed the big heavy hitting CAD programs that were still running on only single core , which was most of them. They did mention the rendering engine modules were generally multicore.

    Selecting a Computer based on CPU performance used to be easy. Most computers in the general consumer market are just media devices and they are in reality migrating to tablets. If you need a computer to actually compute stuff, you need to do a lot of tedious homework.

    cpubenchmark.net

  16. John

    I recently bought a quad core Dell computer, hoping to ease the very high cpu % problems running multiple tabs in Firefox/Palemoon. Alas it didn’t help one twitch. Are there any multiple tab browsers that are set up to take advantage of multiple cores? And since this has been a problem for years, I wonder why there haven’t been any design changes to enable multiple core usage.

    • Narc

      I imagine Chrome would do better at spreading the load, as it launches a process per tab (plus a few others for handling things like Flash separately), and thus allow the operating system to scatter the processes across multiple cores.

      Mind, I say this as someone currently sitting at ~3% CPU usage with 15 tabs across two windows (and I’ve gone up as high as 50-ish tabs without major changes). For reference, my CPU on this machine claims to be “Intel(R) Core(TM)2 Quad CPU Q8300 @ 2.50GHz” — old and not high-end by any means. I expect NoScript helps more here, just preventing most websites from running whatever random junk they feel like running in my browser (until I explicitly allow them because the sites are broken without it, at least).

  17. John

    I’m curious to know if you’ve tried many open tabs using Firefox, as a comparison to Chrome. Firefox, and Palemoon, are basically unusable with my usual load of 5 windows (aprox 100 tabs). This is on a Quad core just a little newer than yours (9400 series). Firefox will be using about 1500-1700k with that many tabs and after a short while it will just lock up(25% cpu), and can only be rescued by ending firefox.exe. Palemoon is a bit better as long as I’m not running news sites (NYTimes.com CNN.com, etc…). Eight news sites will kill Firefox/Palemoon quicker than anything. I don’t run NoScript (too many problems using it) but AdblockPlus and Ghostery seem to take it’s place pretty well. But I had the same problem when I used NoScript.

    I’ll be looking at Chrome to see if I can duplicate your results.

  18. John at the Falls

    Firefox is a bottleneck even in my new system. I have turned Shockwave Flash to ALWAYS ASK on the PLUG IN page option. This helps a great deal. I never minded the ads before but now they are such resource hogs that caused problems as my computers grew older.
    Considering that half my software is still 32 bit, I am not going to hold my breath and wait for multi-core support of software.

    I tried 2 Chromium based browsers which did spread the Flash load around but those did not have the option to turn off Flash which is the real problem. They did operate only a little bit better than Firefox on my 8 year old Dual Core Celeron. I will stay with Firefox because I can turn off Flash. ….. But their new search implementation is too annoying and may even take a look at Internet Explorer again.

  19. blog.tkacprow.pl

    “The bad news is that … there’s nothing to be fixed. ” – not true :). There are multiple was of leveraging the extra cores in Excel. I compared at least 3 – they all differ in performance etc read here: http://blog.tkacprow.pl/excel-multithreading-vba-vs-vbscript-vs-c-net/
    For those that think VBA multithreaded performance is enough there is always a simple library I made in VBA:
    http://blog.tkacprow.pl/excel-vba-multithreading-tool/

    You will definitely see a 100% core utilization using either method – although all three approaches vary in efficiency.
