How Do I Use an “Unallocated Space” Partition?

It’s there; might as well use it.

Unallocated space in a hard disk partition won't be used. I'll look at the two common ways to make unallocated space usable.

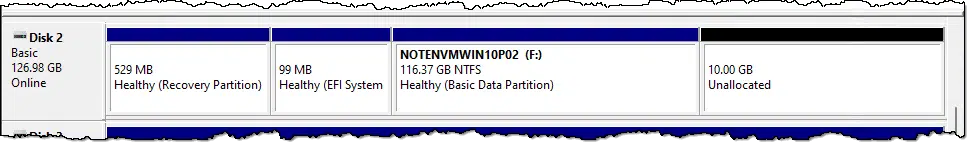

Disk manager highlighting unallocated space.
An unallocated partition as seen in Disk Management. (Screenshot:
Question: What does “unallocated space” on a hard drive mean? Is it just sitting there, waiting to be used when needed, or what? My hard drive is now divided into two halves of 250GB each. I would like to have the whole hard drive clean and free. I searched your archives but there is nothing on deleting a stuck partition.

Well, in a sense, it is just sitting there, waiting to be used. (Why does it exist? Good question. I just know that it exists often enough to warrant addressing.) The problem is it’s waiting for you to tell the system how it should be used.

Fortunately, this is pretty simple. More often than not it doesn’t require any additional tools; basic partition management and rearrangement are built right in.

Become a Patron of Ask Leo! and go ad-free!


Unallocated space

If your hard disk has unallocated space, you can use the Windows built-in disk management tool to either create a new partition with its own drive letter or, if the unused space follows another partition you use, you can extend that partition to make use of the space.


Run Disk Manager by right-clicking on the Start menu and clicking on Disk Management. You should see something similar to this.

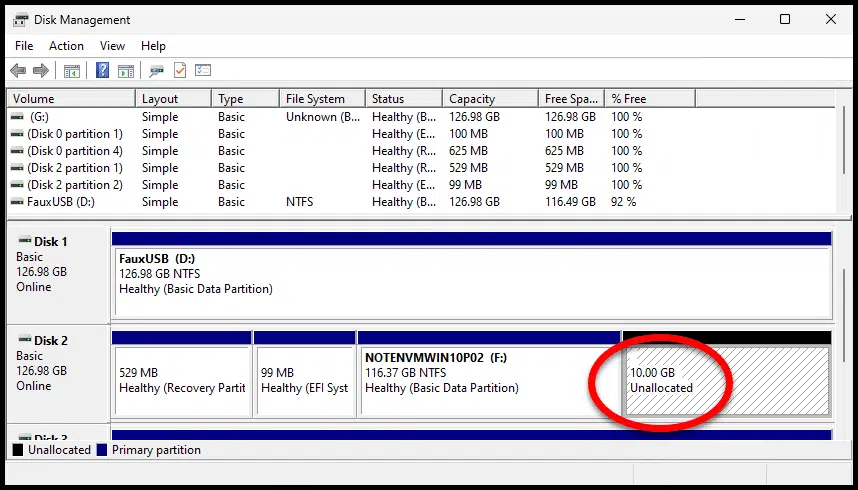

Partitions on a hard disk.
Partitions on a hard disk. Click for larger image. (Screenshot:

That thick blue line represents a single physical hard disk that is divided into several partitions. In the example above, those are:

  • Healthy (Recovery Partition) – This is typically a partition that has a bare-bones copy of Windows, recovery tools, and possibly a copy of Windows to be used for reinstallation and repair.
  • Healthy (EFI System) – This partition is related to the UEFI BIOS and is used at boot time.
  • Healthy (Basic Data Partition) – This partition, which also includes a drive letter in its description, contains that data drive you see within Windows. If you have only one internal disk, you’ll see at least one partition for the “C:” drive containing your system.
  • Unallocated – This is the partition in question. That unallocated partition represents disk space that will not be used until you allocate it.

There are typically two approaches: create a new drive or extend an already existing one.

Format it as an additional drive

A very common approach is to create a new drive out of the unallocated space. It’s conceptually simple: just make the unallocated partition visible.

Right-click on that unallocated drive and click New Simple Volume…

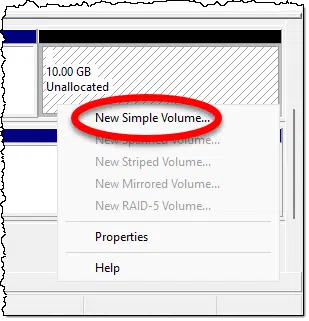

New Simple Volume in disk manager.
Creating a new simple volume in Disk Manager. (Screenshot:

This starts the New Simple Volume Wizard. Click Next on the resulting dialog to be taken to the page where you specify the volume size.

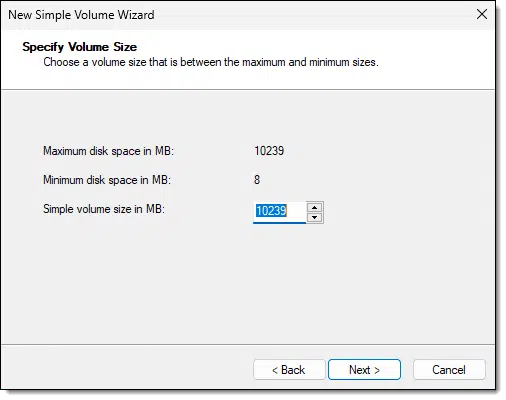

Disk manager: specify volume size.
Specifying volume size in Disk Manager. (Screenshot:

The default answer is to use all of the available space, which is probably what you want. If you want to break the unallocated space into multiple drives, you might choose a smaller size.

Click Next and you’ll choose the drive letter to be assigned to the new partition.

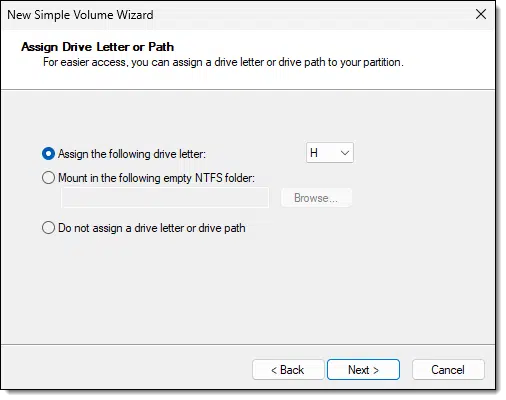

Disk manager: assign drive letter.
Assigning a drive letter in Disk Manager. (Screenshot:

Once again, the default is probably appropriate unless you have a specific reason to change it.

Click Next, and you’ll specify formatting options.

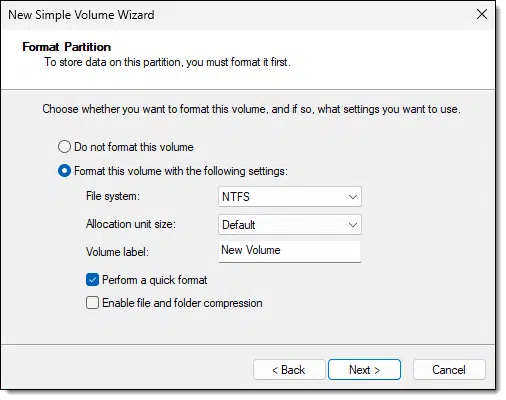

Disk manager: formatting options.
Formatting options. in Disk Manager. (Screenshot:

The answers to the default are typically appropriate, although this is a good time to specify the Volume label of your choosing. It’ll appear as the name of the drive in Windows File Explorer and elsewhere.

Click Next to get a summary screen for confirmation.

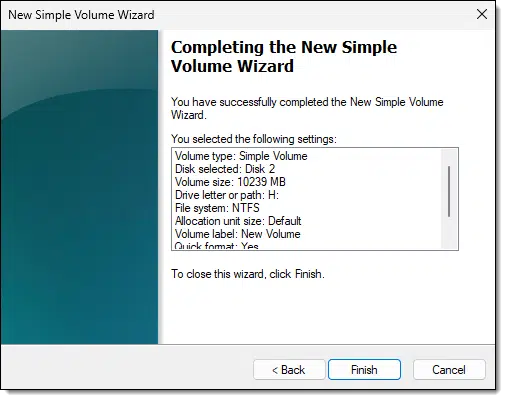

Simple Volume Wizard summary.
Summary of the Simple Volume Wizard settings. (Screenshot:

Click Finish to complete the operation.

Windows then formats the drive. When complete, it appears as “just another drive” on your system.

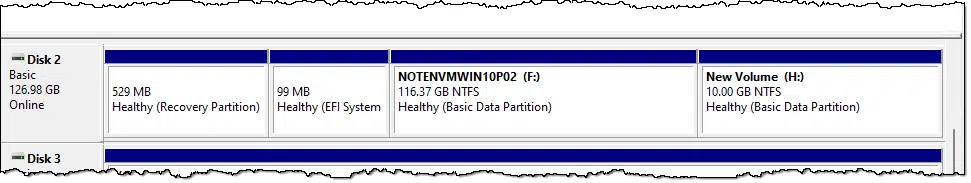

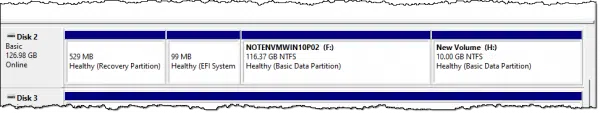

Partitions on a hard disk with new volume created.
Partitions on a hard disk with new volume created. Click for larger image. (Screenshot:

You can begin using the new drive immediately.

Expand the adjacent drive

The other approach (which in previous versions of Windows required third-party tools) is to expand an adjacent volume to use the unallocated space. This is likely the most useful, as it simply adds the unallocated space to the drive physically preceding it. No new drives are created.

Right-click the immediately preceding partition and click Extend Volume…

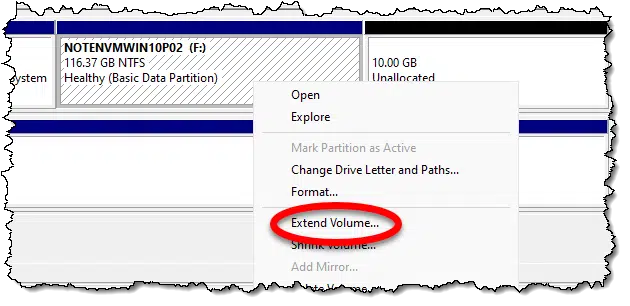

Extend volume option.
Extend volume option. (Screenshot:

That option should only be available if there’s room to expand — meaning that there’s unallocated space following the partition.

This time, we’ll start the Extend Volume Wizard. Clicking Next takes you to the Select Disks dialog.

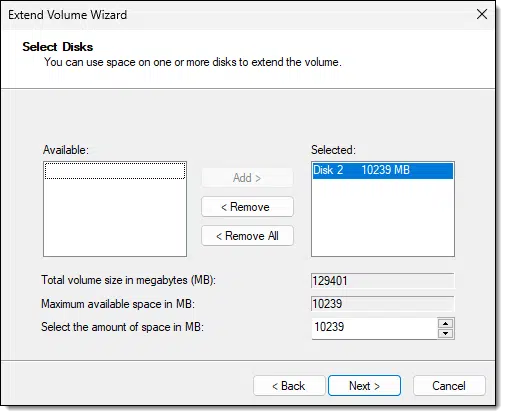

Extending a volume: selecting.
Selecting which disk to include. (Screenshot:

This somewhat confusing step is all about selecting which partitions on the disk are to be added to the volume that we’re extending. The good news is that in this simple and common case — an unallocated partition immediately following the C: drive — the dialog is pre-loaded with default choices that are probably what you want: extend into the entire unallocated partition.

So all we need to do is click Next.

A summary screen confirming our choices appears. Click Finish, and Windows begins the operation.

When complete, the unallocated partition is gone, and the F: partition is larger.

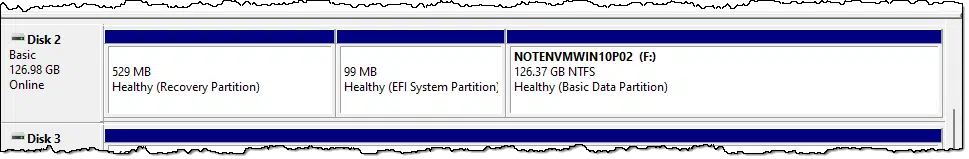

The F: partition has been extended.
The F: partition has been extended. Click for larger image. (Screenshot:

Non-adjacent partitions

There is one scenario where the Disk Management tool within Windows won’t be able to help: when the unused space isn’t immediately following the partition you want to make larger.

Third-party tools are called for in this situation. There are several that can re-arrange the partitions on your disk however you’d like.

But for this simple case, none are needed.

Do this

If you’ve got unused space on your hard disk — which can happen for a variety of reasons — why not use it? You can either make it an additional drive or add it to an existing drive.

Here’s something else worth doing: subscribe to Confident Computing! Less frustration and more confidence, solutions, answers, and tips in your inbox every week.

Podcast audio


2 comments on “How Do I Use an “Unallocated Space” Partition?”

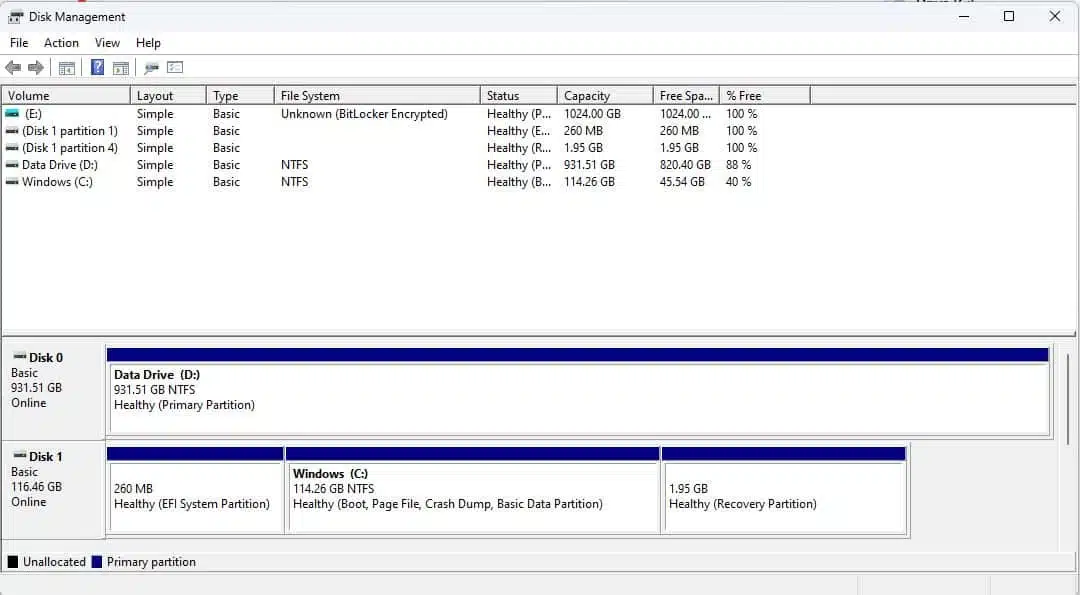

  1. When I got a new computer a couple of months ago, I saw that it had two partitions. I opened Disk Management to combine them as I always do when I get a partitioned computer. When I opened Disk Management, it appears as if there were two physical drives.
